Tension Compensation Devices
Ratchet, pulley and spring tension compensation devices for 25kV AC railway overhead contact systems, TB/T 2075 compliant, factory-direct from Chuangwit.
Henan Chuangwit tension compensation devices maintain constant mechanical tension in railway overhead contact systems (OCS) as temperature and load conditions change. By automatically compensating wire length variations, they keep contact wire sag within tolerance, preserve pantograph contact quality, and extend the service life of the catenary and its components.
Our range covers the three established compensation principles — ratchet tensioners with counterweights, pulley-block systems (1:2, 1:3 and 1:4 ratios) and maintenance-free spring compensators — together with the complete set of anchoring fittings required to install them: anchor arms, tension rods, rod bases, guide and fixed pulleys, tunnel limit frames, and connecting rods and connectors. As automatic tensioning devices, they are the direct equivalent of the tension-wheel and counterweight assemblies used on European and international overhead contact lines.
All devices are designed and manufactured to the TB/T 2075 series standards and are in service across China's mainline high-speed and conventional networks, as well as urban metro lines. Typical working tensions, travels and mounting arrangements can be adapted to project requirements — contact us with your OCS parameters for a tailored proposal.
Product Groups
- Automatic Tensioners — 13-1H Ratchet Tensioner · 12-1H Compensation Pulley Block (1:2, 1:3, 1:4) · 17-4S Spring Compensator · Pulley Compensation Device · Ratchet Compensation Device · Spring Compensation Device
- Pulleys & Equalizers — 13-3 Equalizing (Balance) Wheel · 23-4 Guide Pulley · 23-5 Fixed Pulley
- Tunnel & Anchor Assembly Fittings — 23-1 Heavy-Duty Anchor Arm · 23-2 Rod (Stay Wire) Anchor Base · 23-3 Tension Rod Assembly · 23-6 Tunnel Limit Frame (Type B/C)
- Connecting Rods & Connectors — 12-2 D-Type Connector · 12-3 Double-Eye Rod (Φ16, Φ20) · 12-4 Tongue-Eye Rod (Φ16, Φ20)
Selection Guide
Ratchet tensioner (13-1H). The standard solution for mainline OCS. A ratchet wheel and counterweight stack keep tension constant over a wide temperature range with large compensating travel. Choose this type for open-ballast mainline and high-speed sections (up to 200 km/h) where the anchor location can accommodate the counterweight.
Compensation pulley block (12-1H). Used together with counterweights when the rope direction must be changed or the effective travel multiplied. Available in 1:2, 1:3 and 1:4 transmission ratios — the higher the ratio, the shorter the counterweight travel required, at the cost of a heavier counterweight stack. Commonly combined with 23-4 guide pulleys and 23-5 fixed pulleys in tunnel anchoring systems.
Spring compensator (17-4S). A maintenance-free alternative where there is no room for counterweight travel — short anchor sections, tunnels and metro installations. No ropes, pulleys or weights to maintain; ideal for urban DC systems and lightly maintained lines.
Tunnel anchoring fittings (23 series). In tunnels, compensation is built from 23-1 heavy-duty anchor arms, 23-2 rod anchor bases, 23-3 adjustable tension rod assemblies and 23-6 limit frames that restrain the counterweight stack. Specify them as a set; all items share mounting dimensions within the TB/T 2075.23 series.
Not sure which principle fits your section? Send us the line speed, anchor length and available travel — our engineers will propose the configuration.
Standards & Compliance
| Product design standard | TB/T 2075 series — Fittings for overhead contact system of electrification railway. Applicable parts: TB/T 2075.12-2024 (pulley compensation), 2075.13-2024 (ratchet compensation), 2075.14-2024 (spring compensation), 2075.17-2024 (head-span connection), 2075.23-2024 (tunnel anchoring) |
| International system context | Suitable for overhead contact line projects specified to IEC 60913:2024 (international) and EN 50119:2020 (Europe, incl. §7.8 clamps and fittings requirements) |
| Test evidence | Type test reports to TB/T 2075 available on request; additional testing to IEC/EN methods negotiable per project |
Chuangwit compensation devices are type-tested to the TB/T 2075 series (Fittings for overhead contact system of electrification railway); documentation packages for projects specified to IEC 60913 or EN 50119 are available on request.
Frequently Asked Questions
What does a tension compensation device do in an overhead contact system?
It keeps the mechanical tension of the contact wire and messenger wire essentially constant as temperature changes the wire length. Without compensation, tension rises in summer and drops in winter, causing excessive sag, poor pantograph interaction and accelerated wear.
Ratchet, pulley or spring compensation: which should I choose?
Choose ratchet tensioners for mainline sections with space for counterweights; pulley blocks when rope direction changes or travel must be multiplied; spring compensators for tunnels, short anchors and metro lines where counterweight travel is unavailable and maintenance access is limited.
What information do you need to quote a compensation assembly?
Line speed and system voltage (e.g. 25 kV AC / 1.5 kV DC), nominal tension in kN, required compensating travel, anchor type (tunnel or outdoor), desired pulley ratio if any, and quantity. Datasheets are available for all standard models.
Can you manufacture to project-specific drawings?
Yes. Besides the TB/T 2075 series range, we produce compensation fittings to customer drawings and can adapt mounting dimensions to existing infrastructure.
What is the lead time?
Standard models are typically ex-works in 2–4 weeks; project-specific sets are confirmed per order.
13-1G Ratchet Compensation Device
13-1G ratchet compensation device - complete tensioning set with rope, equalizing wheel an...
13-1H Ratchet Tensioner
13-1H ratchet tensioner for railway OCS anchor sections: counterweight-driven constant ten...
12-1G Pulley Compensation Device (1:3 Ratio)
12-1G pulley compensation device (1:3 ratio) for OCS anchors: complete set with 97%+ effic...
12-1H Compensation Pulley Block (1:2, 1:3, 1:4 Ratios)
12-1H compensation pulley block with 1:2, 1:3 and 1:4 ratios for OCS tensioning systems, p...

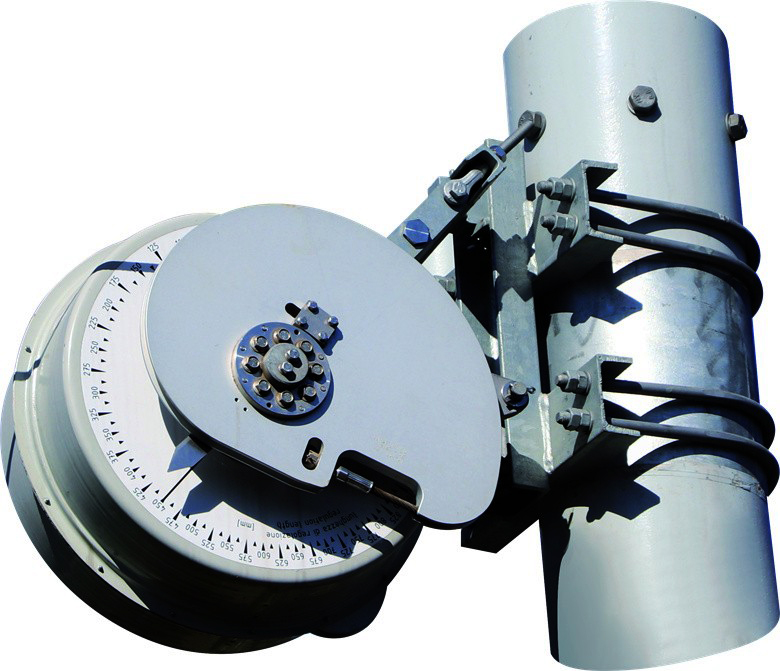

14A/14B Spring Compensation Device
Spring compensation device (14A/14B, volute and column types) for OCS anchors without coun...

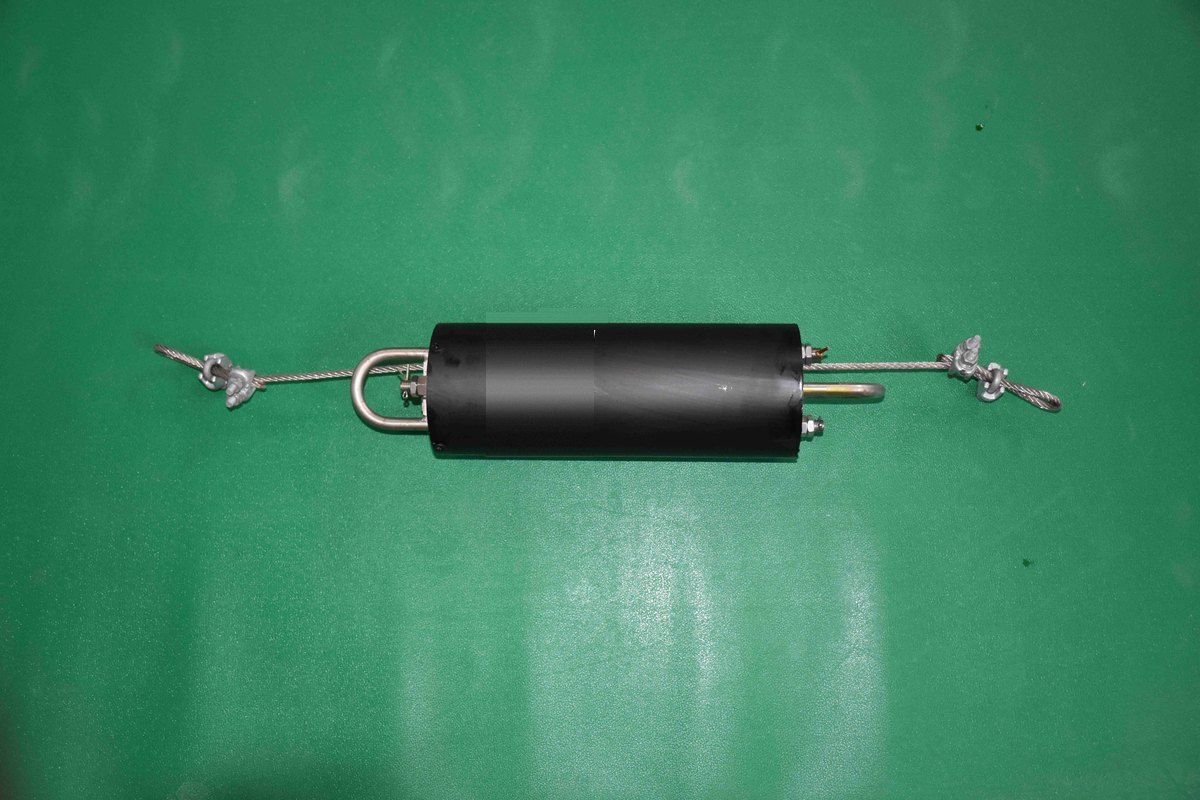

17-4S Spring Compensator
17-4 spring compensator (17-4SA~SD, 17-4LA~LD) for head-span structures: maintenance-free ...

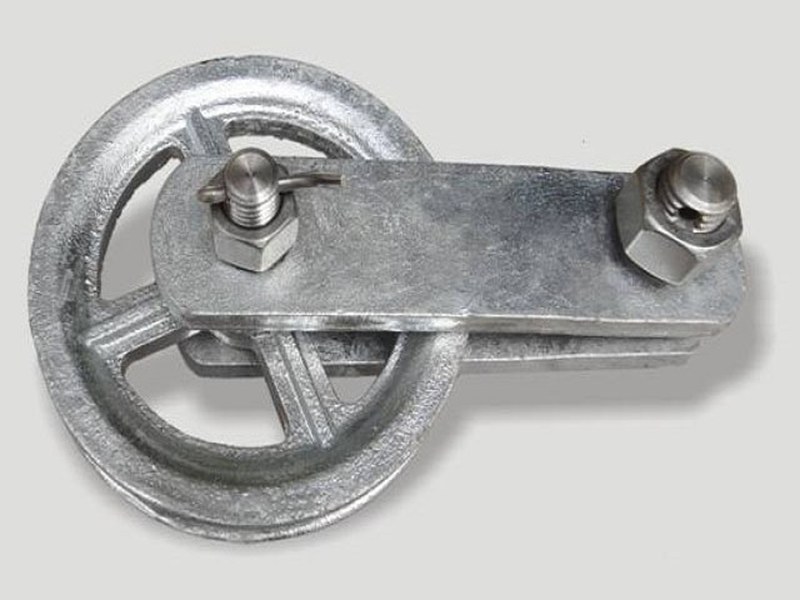

13-3 Equalizing (Balance) Wheel
13-3 equalizing wheel for ratchet compensation systems: balances branch rope tension, prev...

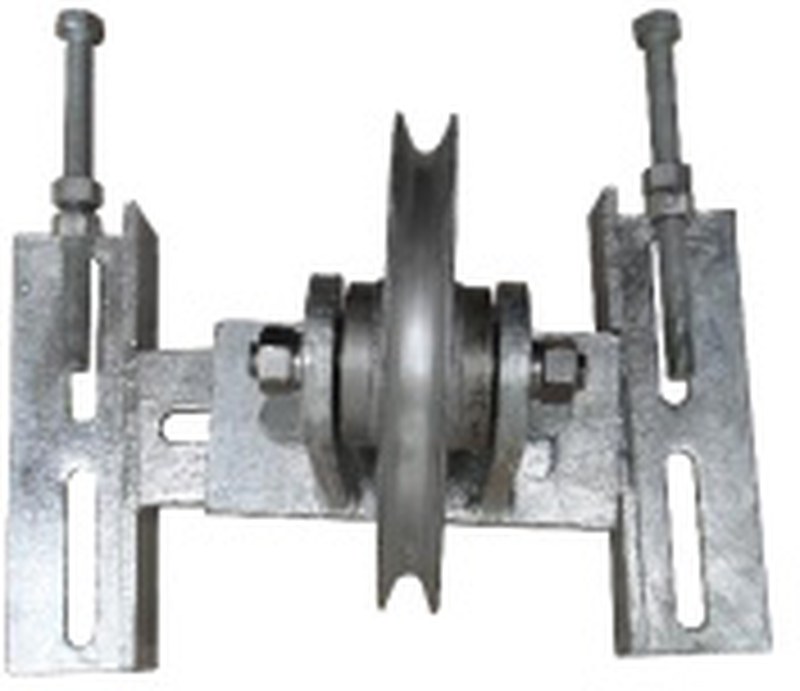

23-4 Guide Pulley
23-4 guide pulley for tunnel anchoring compensation systems: changes rope direction with m...

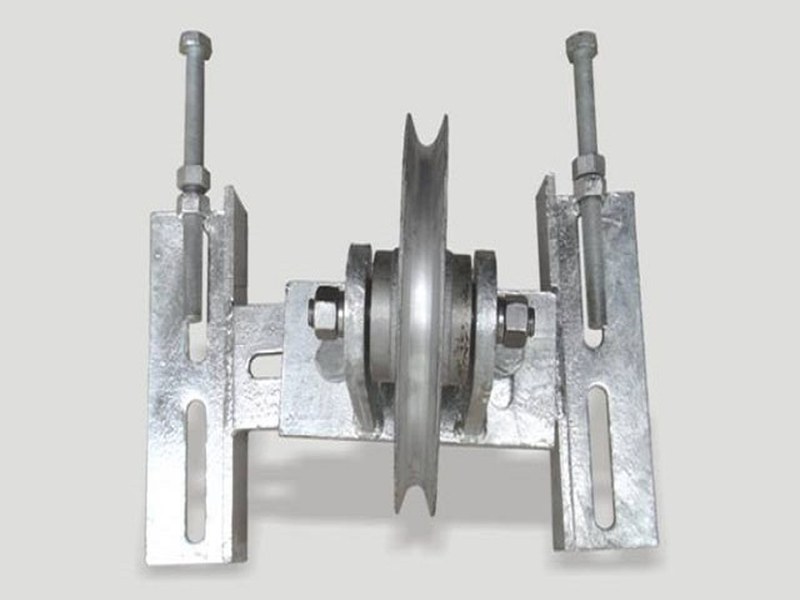

23-5 Fixed Pulley
23-5 fixed pulley for tunnel anchoring compensation: fixed rope support with anti-derailme...

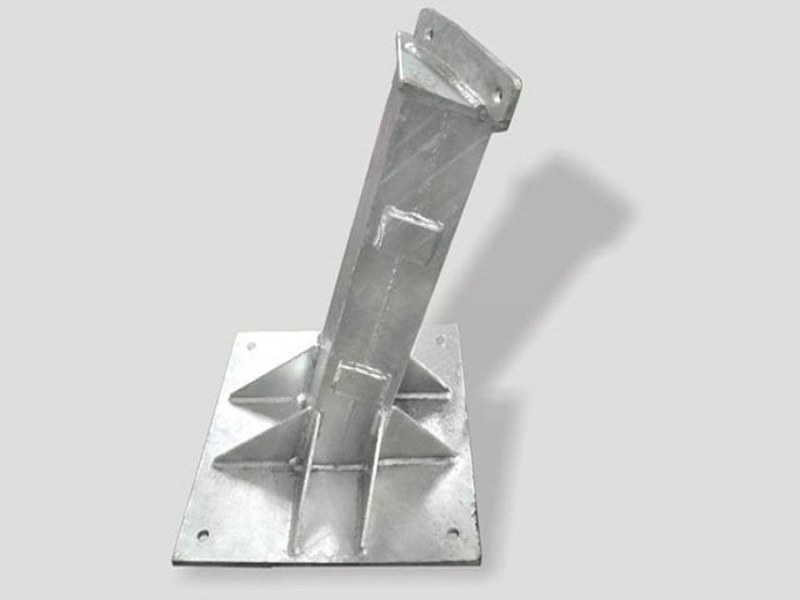

23-1 Heavy-Duty Anchor Arm
23-1 heavy-duty anchor arm for tunnel OCS anchoring: welded stiffened structure carrying f...

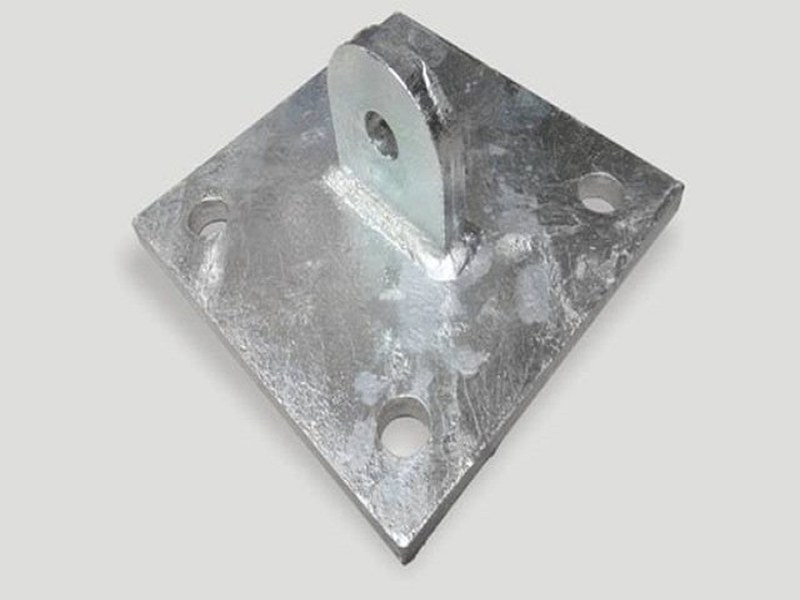

23-2 Rod (Stay Wire) Anchor Base
23-2 rod (stay wire) anchor base for tunnel OCS anchoring: multi-hole plate base with pin-...
23-3 Tension Rod Assembly
23-3 tension rod assembly with length adjuster for tunnel OCS anchoring: forged rod, eye a...
