Product Catalogue
Sectioning & Switching Equipment for Railway & Metro OCS
Henan Chuangwit manufactures CRCC-certified section insulators, neutral section insulators, HV disconnectors and metro DC disconnectors for 25kV AC railways and 750V/1500V DC urban rail — with project-engineered customization for national railway and metro projects.
Product Categories
8 CATEGORIESSection Insulator
In-phase sectioning for 25kV AC OCS — shuttle, wing and rhombic types, up to 200 km/h.
→ TB/T 3037Phase Separation Insulator
Neutral section insulators for phase breaks on 25kV AC electrified railways.
→ GB 1985HV Disconnector
Outdoor HV disconnectors 10–27.5kV, with manual, hand-crank and motor operating mechanisms.
→ IEC 61992-3Metro DC Disconnector
1.5kV DC disconnectors up to 6000A for metro traction power isolation.
→ TB/T 3252Metro Section Insulator
Rigid and flexible metro section insulators for 750V/1500V DC OCS, up to 120 km/h.
→ TB/T 2075Tension Compensation Devices
Ratchet, pulley and spring tension compensators with complete tunnel anchoring fittings for constant OCS tension.
→ TB/T 2075.1Cantilever Systems
Speed-class cantilever assemblies to 350 km/h plus tubes, bases and tunnel support fittings.
→ TB/T 2075.3Positioning Devices
Limit and non-limit locators, positioning tubes, registration clamps and head-span sets to 350 km/h.
→Featured Range
FULL CATALOGUE IN CATEGORY PAGES
FYFH-1.0TG-DC Single-Line Section Insulator
Flexible single-line metro section insulator per TB/T 3252-2022 for 1500V DC metro OCS, up...
ZGW1-1.5/3150 DC Disconnector (3150A)
ZGW1-1.5/3150 DC disconnector for 1500V DC metro traction power isolation, rated 3150A.
GW1-27.5 Double-Pole Disconnector (27.5kV)
Double-pole vertical-break outdoor HV disconnector for 2x27.5kV traction substation and se...
XFXP-1.8T-C Neutral Section Insulator (25kV)
Classic neutral section insulator per TB/T 3037-2002 for phase separation on 25kV AC railw...
FYFH-1.6AT-S Shuttle Section Insulator (25kV AC)
Shuttle-type Type A section insulator per TB/T 3036-2016 for in-phase sectioning of 25kV A...
FYFH-2.0TG-DC Double-Line Section Insulator
Flexible double-line metro section insulator per TB/T 3252-2022 for twin contact wire 1500...

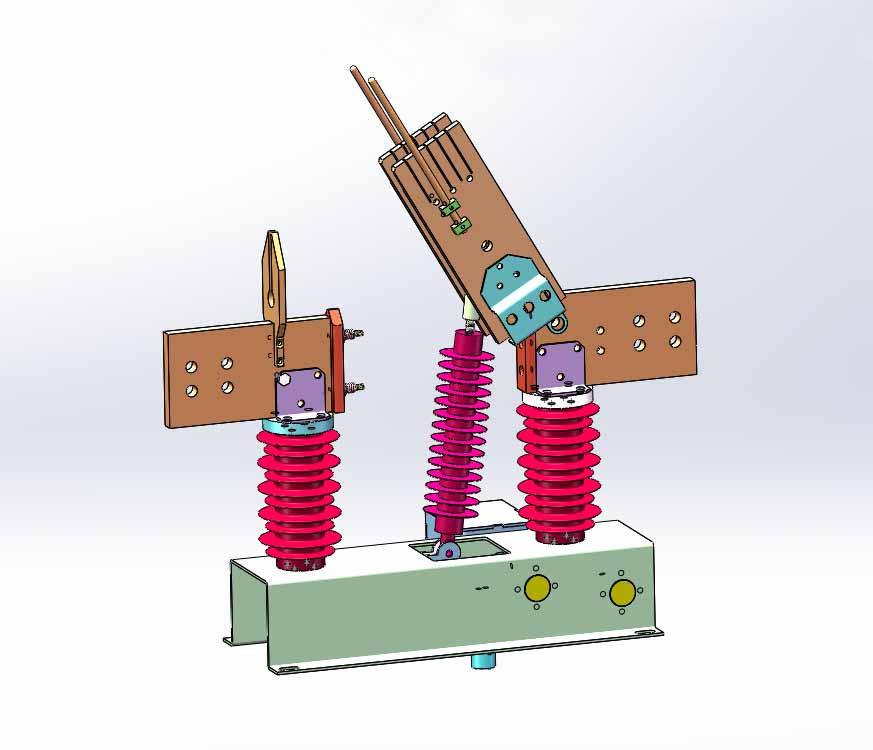

ZGW1-1.5/6000 DC Disconnector (6000A)
ZGW1-1.5/6000 high-capacity DC disconnector for 1500V DC metro traction power, rated 6000A...

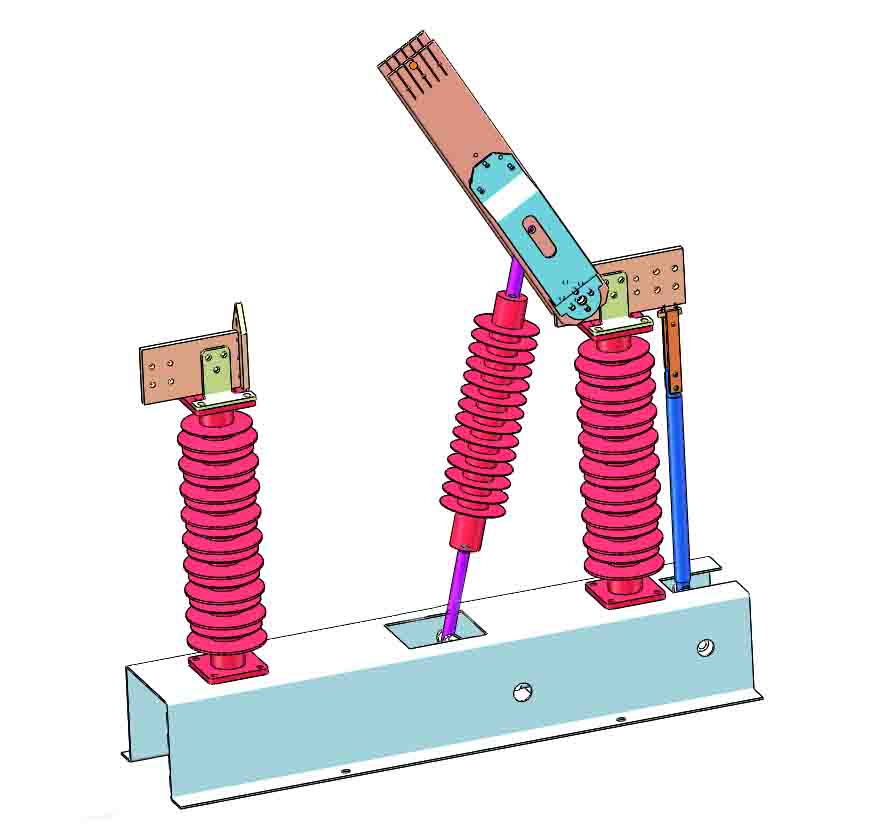

GW1-27.5D Vertical Disconnector (27.5kV)
27.5kV vertical-break outdoor HV disconnector with earthing provision for railway catenary...

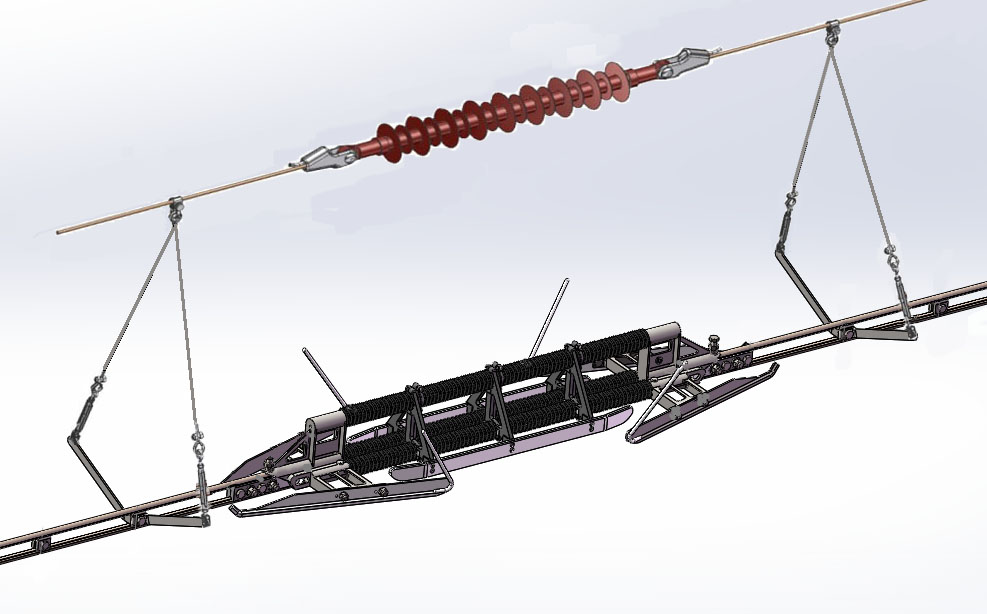

XFXP-1.8T-2019 Neutral Section Insulator (25kV)
2019-version neutral section insulator per TB/T 3037-2002 for 25kV AC overhead contact sys...

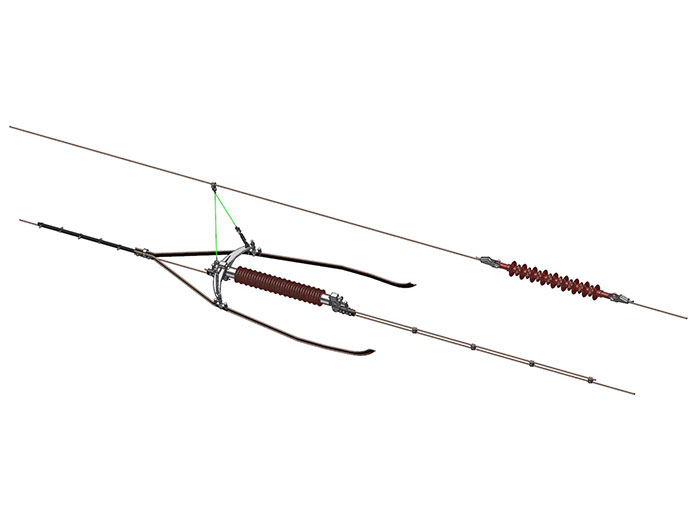

FYFH-1.6AT-Y Wing Section Insulator (25kV AC)
Wing-type (Y-frame) Type A section insulator per TB/T 3036-2016 for 25kV AC railway catena...

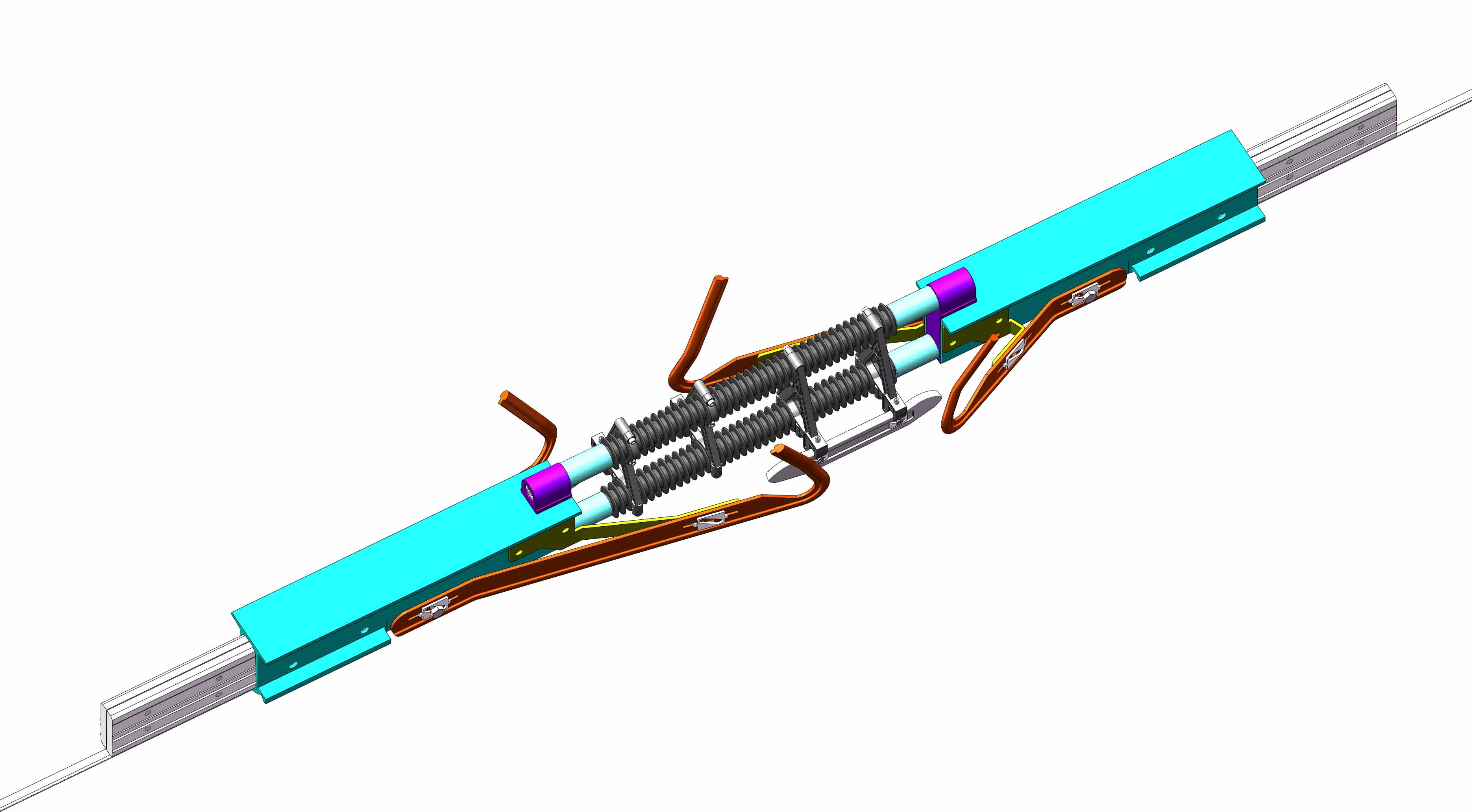

FYFH-0.6T-DC Rigid Section Insulator
Rigid metro section insulator per TB/T 3252-2022 for 1500V DC rigid suspension OCS, up to ...

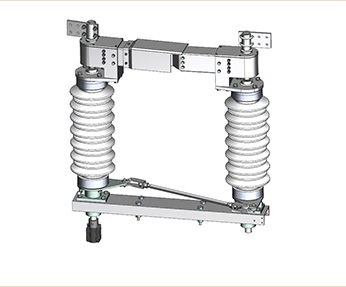

GW4-27.5/1250 Disconnector (27.5kV, 1250A)
GW4-27.5/1250 outdoor HV disconnector per GB 1985-2014, 27.5kV 1250A, for railway traction...
How to Select
VOLTAGE · SPEED · ENVIRONMENTBy System Voltage
25kV AC mainline railways: section insulators (TB/T 3036) and neutral section insulators (TB/T 3037), plus 27.5kV HV disconnectors. 750V/1500V DC metro: TB/T 3252 metro section insulators and 1.5kV DC disconnectors up to 6000A.
By Line Speed
Mainline AC products are rated up to 160-200 km/h per TB/T 3036/3037 depending on type; metro DC section insulators cover up to 120 km/h per TB/T 3252-2022. Match the sub-model to your design speed at inquiry.
By Service Environment
High-altitude, heavy-pollution, coastal salt-fog and tunnel sections call for enhanced-insulation (-E) variants with ≥430mm reinforced air gap. Test tracks needing AC/DC switching use our 1.5kV/27.5kV dual-purpose disconnector.
