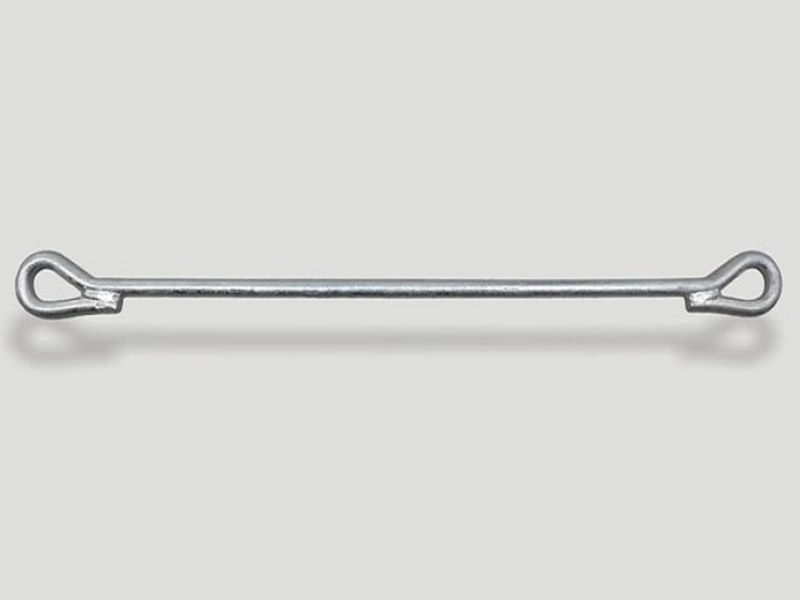

12-3 Double-Eye Rod (Φ16, Φ20)
Double-eye adjustable tension rod for compensation and anchoring connections.
Specifications
| Model | 12-3 |
|---|---|
| Standard | TB/T 2075.12-2024, Fittings for overhead contact system of electrification railway — Part 12: Pulley compensation devices |
| Installation | As a tensioned connecting link in compensation assemblies, pin-jointed to adjacent fittings at both ends |
The 12-3 double-eye rod is an adjustable tension link for compensation and anchoring systems of the overhead contact system: an eye at each end connects to adjacent components through pins, and the link length can be fine-tuned to set the assembly geometry.
Manufactured to TB/T 2075.12-2024, Fittings for overhead contact system of electrification railway — Part 12: Pulley compensation devices, the rod comes in two diameters — Φ16 and Φ20 — covering the standard load grades. A turnbuckle-style fitting can be fitted on the rod body for length adjustment, and the eye sections are formed so the steel's grain flow remains intact for reliable load capacity.
The finished rod is hot-dip galvanized for outdoor service and pairs with the 12-2 D-type connector and 12-4 tongue-eye rod in the complete compensation fitting set.
Henan Chuangwit Railway Equipment Co., Ltd. supplies the 12-3 under CRCC certification, with both diameters available from stock production.
Frequently Asked Questions
What is the double-eye rod for?
It is an adjustable tension link with an eye at each end, joining compensation and anchoring components and allowing their spacing to be adjusted.
Which sizes are available?
Two rod diameters — Φ16 and Φ20 — covering different load grades; length adjustment uses a turnbuckle-style fitting.
How is it made?
The rod is forged from round steel with the eyes formed so the grain flow stays intact, then hot-dip galvanized.
Performance
Operating Conditions
Outdoor service in tension compensation and anchoring assemblies, transmitting rope and tension loads through moving and fixed joints.
Mechanical Performance
Forged double-eye rod (Φ16 / Φ20) with matched pin joints transmits tension through the compensation linkage; both eyes align under load without twist.
Applications
Tension Links
Carries tension in the compensation linkage.
Two Sizes
Φ16 and Φ20 pin diameters.
Pin-Jointed
Both ends articulate with matched pins.
12-Series Rods
Pairs with 12-2 / 12-4 links.
