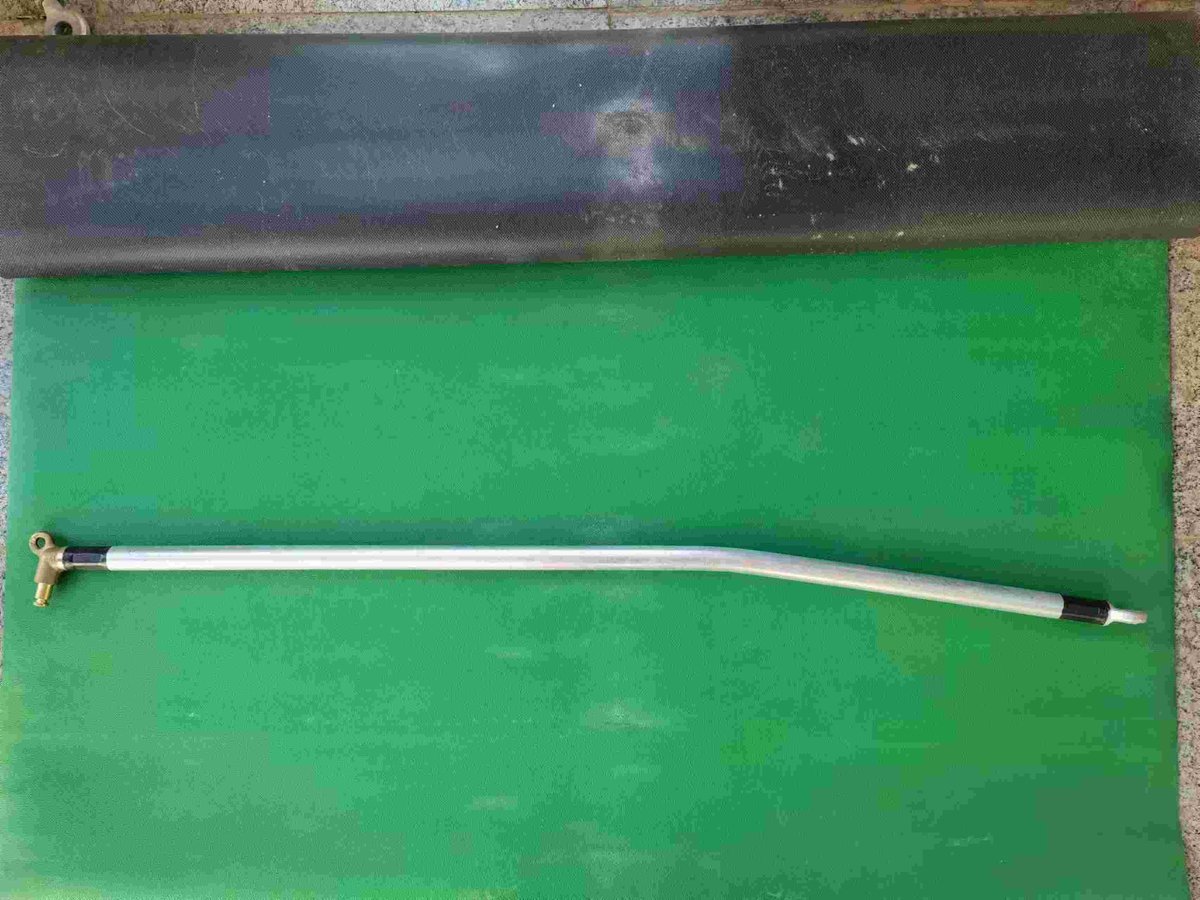

4-1 Standard Locator
Bent-head tube locator for non-limit-type registration on straight and general-curve sections.
Specifications
| Model | 4-1 |
|---|---|
| Drawing No. | 4-1 |
| Standard | TB/T 2075.4-2024 — Part 4: Non-limit-type positioning devices |
| Installation | Hinged on the registration bracket, holding the contact wire through the registration clamp |
The 4-1 standard locator is the registration member of a non-limit-type positioning device: a tube (or channel) member with a bent head, one end holding the contact wire through the registration clamp and the other hinged through its hook to the registration bracket. Unlike the limit type, no stop face is provided — the locator simply holds the stagger while swinging freely with the wire's dynamic movement.
The structure is light, keeping the concentrated mass at the registration point small, and the hinge works freely without sticking. It suits straight sections and general-curve registration points on conventional and mixed-traffic lines.
Design Features
- Light structure keeps the registration point mass low
- Hinged bracket fit swings freely without catching
- Common part with the 3-4A registration clamp
- Smooth body surface suits dynamic pantograph contact environment
The product is manufactured under CRCC railway product certification and an ISO 9001 quality management system, with incoming material inspection, in-process control on critical operations and batch-by-batch final inspection before delivery.
Henan Chuangwit Railway Equipment Co., Ltd. supplies this locator with selection calculations, matched fittings and site technical guidance for traction power projects. The standard locator (4-1, non-limit type) holds the stagger but does not limit uplift — it swings freely with the wire. Limit locators (3-1) add a stop face that caps uplift, and are used on higher-speed lines. Straight sections and general curves on conventional and mixed-traffic electrified lines, where OCS design does not require uplift limitation at the point. The registration clamp (3-4A) at the locator head grips the wire; the locator's other end hooks to the 3-2 registration bracket on the positioning tube. It is a bent-head tube (or channel) member — light and suited to the dynamic contact environment; finish is anti-corrosion for outdoor service.Frequently Asked Questions
How does a standard locator differ from a limit locator?
Which lines is the 4-1 for?
What holds the contact wire?
Is it a forged or tube part?
Performance
Operating Conditions
Outdoor service at OCS registration points on mainline, high-speed and station structures, subject to suspension, wind, ice and dynamic pantograph loads as defined by the OCS design.
Mechanical Performance
Light tube structure follows wire dynamics freely; hinge and clamp interfaces carry registration loads without play.
Applications
Conventional Lines
Straight and general-curve registration.
Station Yards
Light locator suits dense points.
Standard Assemblies
Matches 3-2 brackets and 3-4A clamps.
Maintenance Access
Simple structure, quick replacement.
