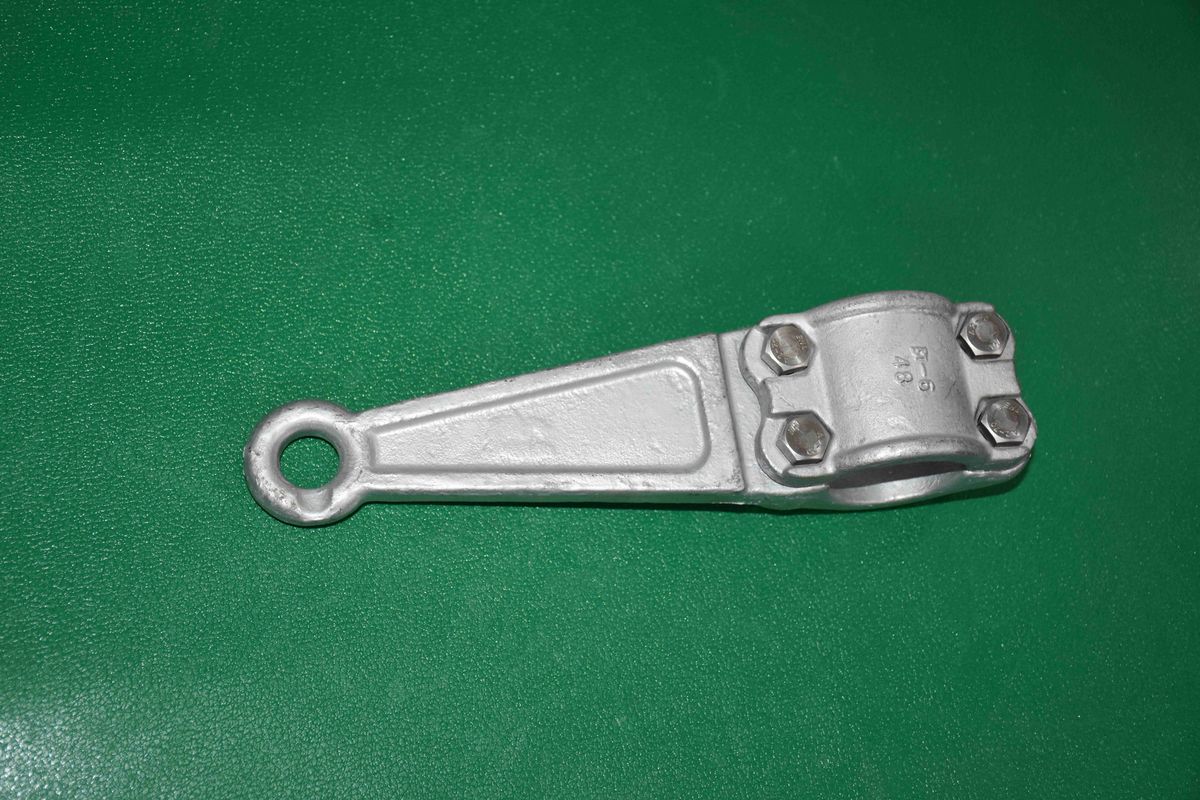

4-5 Long Registration Eye (Φ48 / Φ60)
Extended-span clamp ring giving extra connection reach on positioning and cantilever tubes.
Specifications
| Model | 4-5 (Φ48/Φ60) |
|---|---|
| Drawing No. | 4-5 |
| Standard | TB/T 2075.4-2024 — Part 4: Non-limit-type positioning devices |
| Installation | Clamped on positioning or cantilever tubes as an extended-span connection point |
The 4-5 long registration eye extends the ordinary registration eye with a longer ring span between clamp and ear: the greater reach lets connected parts clear obstructions and gives ropes and tension members a longer, better-angled run. It bolts around cantilever or positioning tubes in the usual split-ring way, with the position adjustable along the tube.
Two tube diameters are covered — Φ48 and Φ60 — and the ear hole is standard for the rope and positioning fittings, including the flexible locator's tension rope and wind brace ropes.
Design Features
- Extended ring span gives connection reach and part clearance
- Φ48 and Φ60 diameters cover the tube families
- Split-ring installation, position adjustable on the tube
- Ear hole standard for tension ropes and positioning fittings
The product is manufactured under CRCC railway product certification and an ISO 9001 quality management system, with incoming material inspection, in-process control on critical operations and batch-by-batch final inspection before delivery.
Henan Chuangwit Railway Equipment Co., Ltd. supplies this locator with selection calculations, matched fittings and site technical guidance for traction power projects. The extended span moves the connection ear further from the tube — useful for clearing obstructions and for giving tension ropes and stays a better angle. Φ48 and Φ60, covering the positioning tube and cantilever tube families of the non-limit positioning system. Tension ropes of the 4-4 flexible locator, wind brace ropes and similar fittings with the standard ear hole. Yes — the split ring opens and bolts around the tube anywhere along its length without dismantling the assembly.Frequently Asked Questions
Why choose a long registration eye over the ordinary one?
Which tube sizes does it fit?
What connects to it?
Can it be added to an existing tube?
Performance
Operating Conditions
Outdoor service at OCS registration points on mainline, high-speed and station structures, subject to suspension, wind, ice and dynamic pantograph loads as defined by the OCS design.
Mechanical Performance
Extended ear span carries rope loads with better geometry; clamp grip retains position under vibration.
Applications
Flexible Registration
Anchors the 4-4 locator tension rope.
Wind Stay Systems
Improves rope angles for stays.
Retrofit & Repair
Split ring bolts on in place.
Standard Assemblies
Ear matches rope end fittings.
