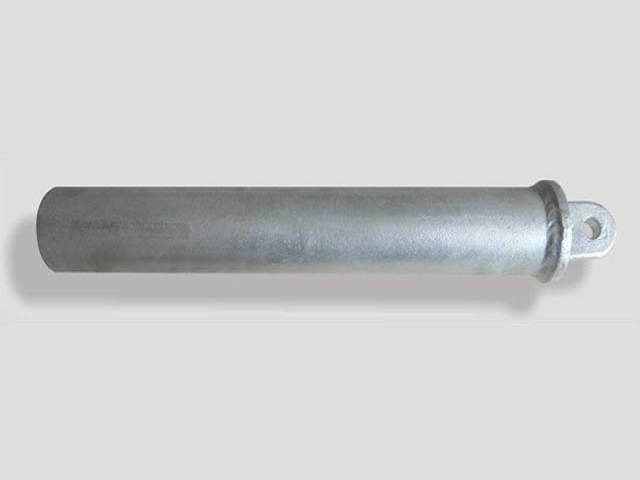

JL62-07 Positioning Tube
Galvanized positioning tube rated 4.5 kN horizontal working / ≥13.5 kN breaking, in 20# seamless steel or Q235A.
Specifications
| Model | JL62-07 |
|---|---|
| Standard | TB/T 2075 series, Fittings for overhead contact system of electrified railway |
| Tensile Failure Load | Working 4.5 kN · Tensile 6.75 kN · Breaking ≥13.5 kN |
| Materials | 20# seamless steel / Q235A, die-forged, hot-dip galvanized |
| Installation | Carries the locator on the cantilever, allowing horizontal adjustment of the registration |
The JL62-07 positioning tube fixes the locator and eases its horizontal adjustment, adding elasticity to the registration point. Maximum horizontal working load is 4.5 kN, tensile withstand 6.75 kN and breaking load at least 13.5 kN.
Materials are 20# seamless steel tube or Q235A steel per order, finished by metal-die forging and hot-dip galvanizing.
Specifications
- Maximum horizontal working load: 4.5 kN
- Tensile withstand load: 6.75 kN
- Breaking load: ≥13.5 kN
- Material: 20# seamless steel / Q235A, die-forged, hot-dip galvanized
The product is manufactured under CRCC railway product certification and an ISO 9001 quality management system, with incoming material inspection, in-process control on critical operations and batch-by-batch final inspection before delivery.
Frequently Asked Questions
How does JL62-07 differ from JL62-89?
Ratings are equivalent (4.5 kN working, ≥13.5 kN breaking); the -07 is the later design with material options of 20# seamless steel or Q235A — confirm the drawing your design cites before ordering.
What loads does it carry?
Maximum horizontal working load 4.5 kN with tensile withstand 6.75 kN and breaking load at least 13.5 kN.
Which material should I order?
Follow your design drawing's material call-out; both variants are die-forged and hot-dip galvanized with identical interfaces.
What does it mount?
The locator, together with the registration bracket family — the tube is the adjustable backbone of the registration point.
Performance
Operating Conditions
Outdoor service at OCS registration points on mainline, high-speed and station structures, subject to suspension, wind, ice and dynamic pantograph loads as defined by the OCS design.
Mechanical Performance
Rated 4.5 kN horizontal working with ≥13.5 kN breaking; forged ends carry bracket loads without play.
Applications
Mainline Registration
Standard 4.5 kN class duty.
Material Options
20# seamless or Q235A per order.
Standard Interfaces
Carries locator and bracket family.
Harsh Climates
Hot-dip galvanized protection.
