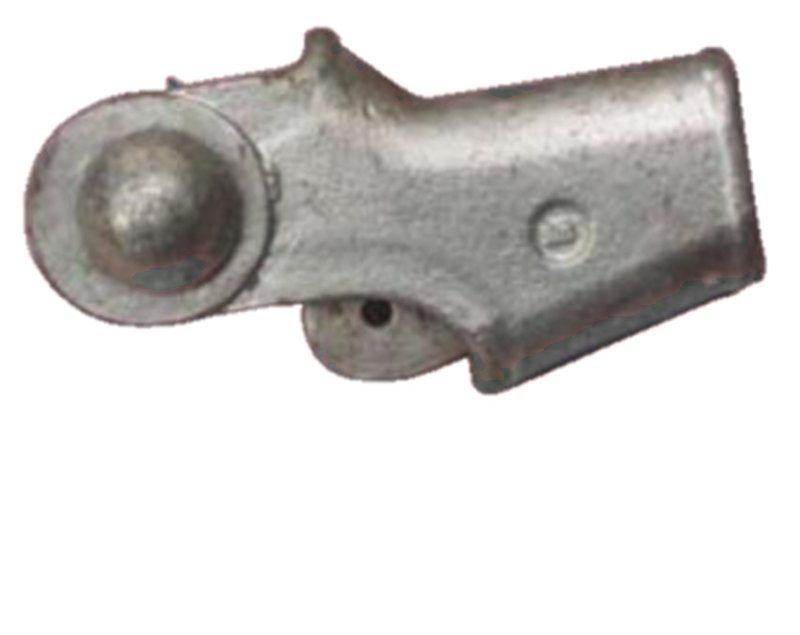

17-2 double-eye wedge clamp
Specifications
| Model | 17-2 |
|---|---|
| Drawing No. | 17-2 |
| Standard | TB/T 2075.17-2024 (OCS fittings for electrified railways — Part 17: Head-span connection fittings) |
| Installation | joints of head-span wire terminations and double-eye fittings |
The 17-2 double-eye wedge clamp for electrified railway OCS joins stranded wire terminations to double-eye fittings in head-span structures, anchoring the wire ends.
Complies with TB/T 2075.17-2024, OCS fittings for electrified railways — Part 17: Head-span connection fittings, for suspension connection of stranded wires of nominal cross-section 50mm² to 80mm² and compensation ropes of 8.75mm to 9.5mm OD in anchoring assemblies.
Product Overview
17-2The double-eye wedge clamp consists of a clamp body and a wedge; the stranded wire is inserted and self-locked by the wedge, and the double eye connects to adjacent parts via pins, with a clear load path and easy assembly and removal. The company holds CRCC railway product certification.
Key Features
- Wedge self-locking structure with reliable grip
- Double-eye connection form, easy to pair with pin fittings
- For terminations of 50mm² to 80mm² stranded wires
- Compact structure, easy installation
Compliance & Quality Control
Complies with TB/T 2075.17-2024 (OCS fittings for electrified railways — Part 17: Head-span connection fittings), Products are controlled under CRCC railway product certification and the ISO9001 quality management system, with incoming material re-inspection and batch-by-batch factory inspection before delivery.
Operating Conditions & Typical Applications
For joints between stranded wire terminations and double-eye fittings in head-span structures.
