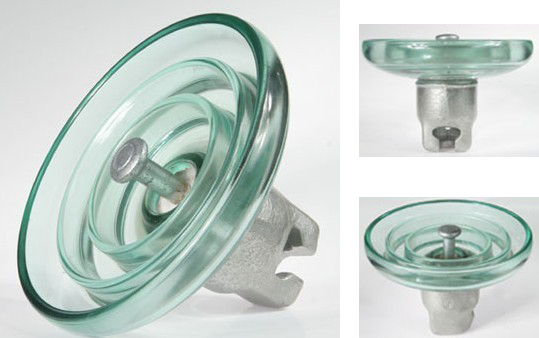

LXP/LXWP series glass suspension insulator
LXP/LXWP series 70~80kN
Specifications
| Model | LXP/LXWP |
|---|---|
| Standard | GB/T 11030-2008, TB/T 3199 series (Insulators for electrified railway OCS) |
| Rated Voltage | 25kVOCS systems |
| Operating Temperature | -40℃~+70℃ |
| Altitude | <4000m |
| Materials | highstrengthporcelain/composite silicone-rubber insulator, zinc-sleeve steel pin |
| Installation | cantilever, positioning and suspended installation at tensioning points |
Glass suspension insulators mainly serve OCS suspension insulation, long service life, self-shattering at zero value. LXP — standard glass suspension insulator; LXWP — antipollution glass suspension insulator.
| Insulator model | Drawing No. | Nominal diameterD(mm) | Structure heightH(mm) | nominal creepage distance(mm) | Rated mechanical failing load(kN) | lightning impulse withstand voltage(kV) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| LXP-70T | 15 | 255 | 146 | 320 | 70 | 100 | 4.4 |
| LXWP-70T | 16 | 255 | 146 | 400 | 70 | 110 | 5 |
| LXWP1-70T | 16 | 280 | 146 | 450 | 70 | 125 | 5.5 |
| LXP-80T | 15 | 255 | 146 | 320 | 80 | 100 | 4 |
| LXWP-80T | 16 | 255 | 146 | 400 | 80 | 110 | 5 |
| LXWP1-80T | 16 | 280 | 146 | 450 | 80 | 125 | 5.5 |
Performance
Operating Conditions
for different pollution class sections, bearing both mechanical load and electrical insulation duties.
Mechanical Performance
Cantilever load8~20kN classcomplete, each porcelain body passes an individual mechanical load test; composite type is impact-proof without shattering.
Electrical Performance
Dry/wet power-frequency withstand voltage, lightning impulse withstand voltage and creepage distance meet TB/T 3199 — double-insulation types offer higher reliability.
Applications
Mainline cantilever suspension:
mainline cantilevers use glass suspension insulators to insulate live parts from masts.
Heavily polluted coastal sections:
large-creepage glass suspension insulators prevent pollution flashover in coastal heavily polluted sections.
Tensioning insulation:
at tensioning points, glass suspension insulators bear tension and provide insulation.
Cold regions:
glass insulator bodies resist freeze-thaw cycles stably in cold regions.
