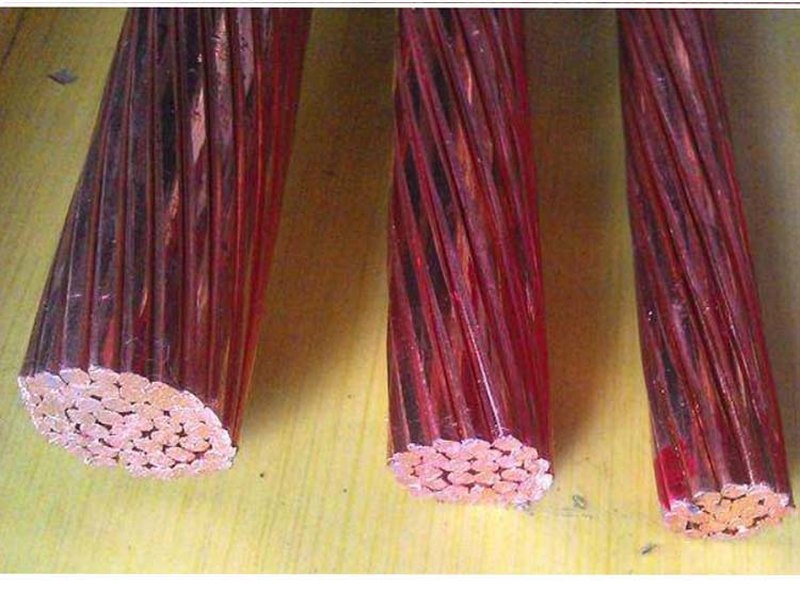

contact wire mid-point anchor rope
Specifications
| Model | mid-point anchor rope (used with 6-1/6-2 clamps) |
|---|---|
| Drawing No. | — |
| Standard | TB/T 2075.6-2024, OCS fittings for electrified railways — Part 6: Mid-point anchor assemblies |
| Installation | at tension length middle masts, anchored to contact wire and messenger wire via mid-point anchor clamps |
The contact wire mid-point anchor rope (used with 6-1/6-2 clamps) for electrified railway OCS anchors the contact wire and messenger wire to the mast at the tension length middle, preventing drift to one side (anti-creep mid-point anchor).
Complies with TB/T 2075.6-2024, OCS fittings for electrified railways — Part 6: Mid-point anchor assemblies. Used with 6-1 and 6-2 mid-point anchor clamps to form the mid-point anchor assembly.
Product Overview
The contact wire mid-point anchor rope connects via clamps to the contact wire (and messenger wire) and the tensioning mast, forming a rigid anchor at the tension length middle that balances both-side tensions, preventing drift from breakage or temperature changes. Rope specs per design. CRCC certified.
Key Features

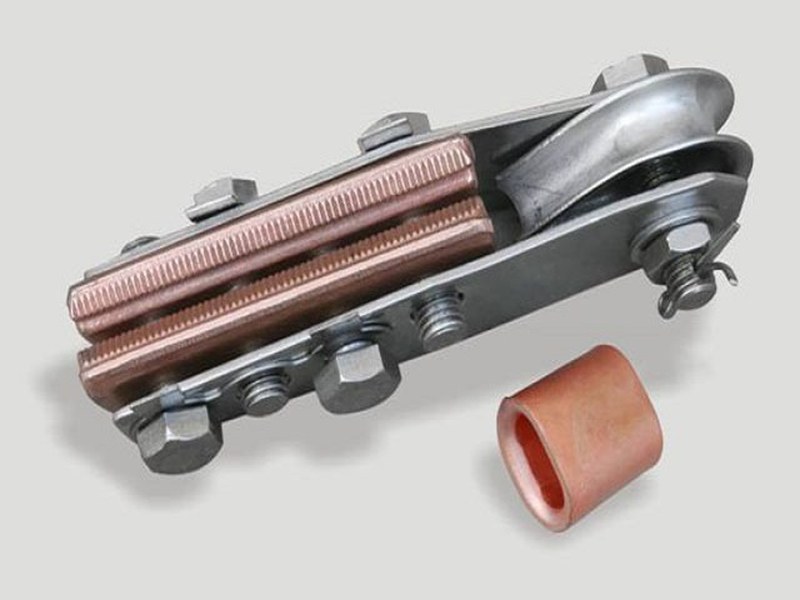

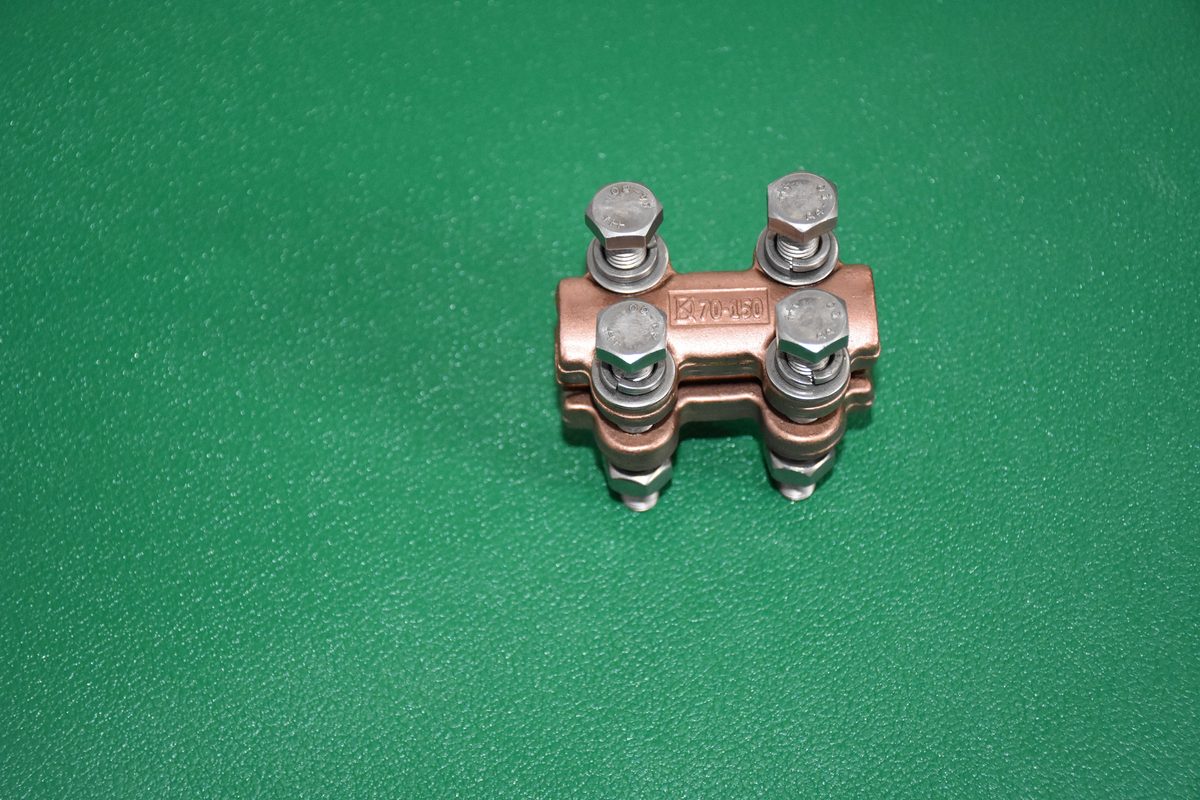

- used with 6-1/6-2 mid-point anchor clamps for reliable anchoring
- clear anti-creep function balancing both-side tensions
- rope size selected by design tension and span
- pre-tension must be adjusted to specification after installation
Compliance & Quality Control
Complies with TB/T 2075.6-2024, OCS fittings for electrified railways — Part 6: Mid-point anchor assemblies. Production follows CRCC factory inspection requirements under ISO9001 quality management: incoming material re-inspection, key processes fully controlled, with batch-by-batch factory inspection before delivery.
Operating Conditions & Typical Applications
For anti-creep mid-point anchors at tension length middles of electrified railway OCS; speed class per certification and design documents. This product is a rope, supplied with the clamps.
Selection & Service
The company provides end-to-end service from selection calculations and drawing confirmation to volume supply and on-site technical guidance, with matched selection advice by line conditions and installation space, and build-to-drawing customization. For technical support and commercial inquiries, please call 0375-6051688.
